Coming Soon - our new manufacturing process. Same quality - new technology!
| Pour Casts |
|

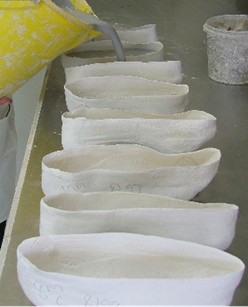

Patient casts are booked in, inspected & then filled with casting plaster to obtain a positive mold of patient's foot. A colour additive is used to differentiate added plaster during the next stage.
|
 |
| Mark heel bisection |

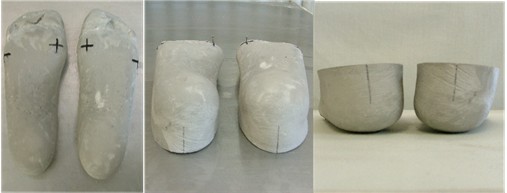

| Heel bisection is checked & marked. This image shows rearfoot everted at NCSP before correction. |
 |
| Forefoot Platform |
|

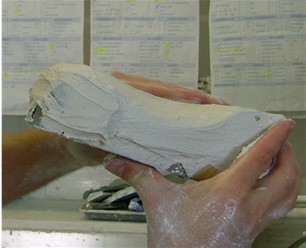

Forefoot measurements are made, then nails added to forefoot to invert/ evert rearfoot as prescribed. Plaster is then added to this area to create a forefoot platform.
|
 |
| Arch Fill |
| Plaster is then added to arch area to provide a smooth contour between forefoot platform & rearfoot. the amount of plaster varies depending on prescription. |
 |
| Completed casts |

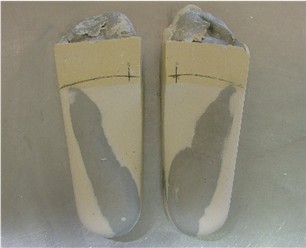

| Completed positive casts showing arch fill & lateral expansion plaster.. |
 |
| Completed cast -side view. |
| Side view of completed cast showing original cast (grey), forefoot platform (yellow), & arch fill (white). Amount of arch fill is dependent on prescription. |
 |
| Heat molding. |

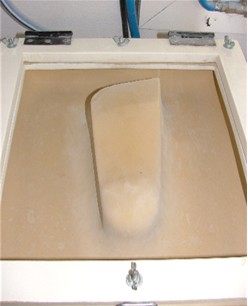

| Orthotic shell material is heated in a convection oven until pliable, then vacuum formed over cast. |
 |
| Polypropylene plate. |

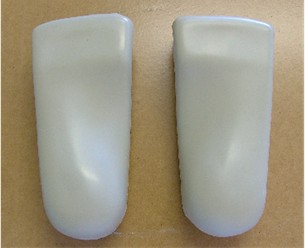

| Polypropylene plates after molding in vacuum press. |
 |
|
|
